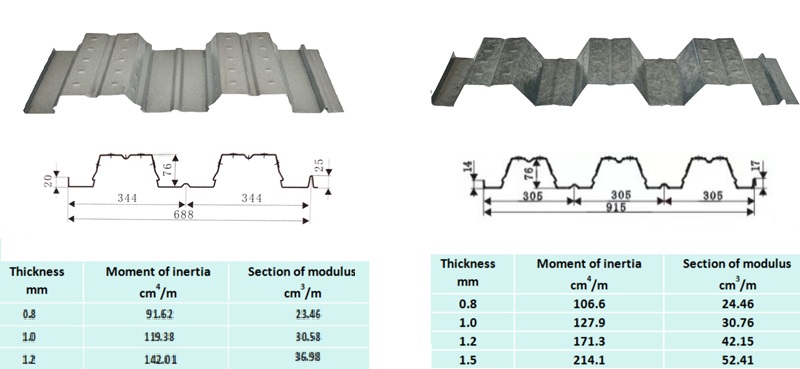

0512-63210149Common models: yx-76-688, yx-51-760
Steel thickness | Unit quantity (kg/M2) | Moment of inertia I(MM4/M) | Section resistance of positive bending distance S+(MM3/M) | Section resistance of negative bending distance | |
Standard thickness (mm) | Minimum thickness of steel core (mm) | ||||
0.8 | 0.74 | 9.53 | 1,081,147 | 28.40 | 28.49 |
1.0 | 0.94 | 11.81 | 1,343,642 | 35.28 | 35.43 |
1.2 | 1.13 | 14.09 | 1,603,064 | 42.07 | 42.29 |
1.4 | 1.32 | 16.37 | 1,859,434 | 48.77 | 48.08 |
1.5 | 1.42 | 17.51 | 1,986,481 | 52.09 | 52.45 |
Steel thickness | Unit quantity (kg/M2) | Moment of inertia I(MM4/M) | Section resistance of positive bending distance | Section resistance of negative bending distance | |
Standard thickness (mm) | Minimum thickness of steel core (mm) | ||||
0.8 | 0.74 | 8.37 | 528.000 | 17.45 | 17.90 |
1.0 | 0.94 | 10.47 | 645.500 | 21.69 | 22.86 |
1.2 | 1.13 | 12.56 | 763.800 | 27.39 | 28.44 |
1.4 | 1.32 | 16.62 | 982.000 | 35.567 | 41.984 |
1.5 | 1.42 | 17.71 | 1,052,500 | 38.161 | 44.941 |
